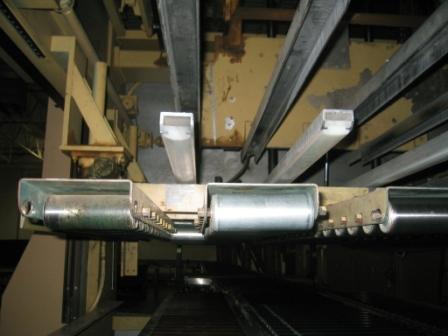

Upper and Lower
Thines for the hold downs on the Ward Counter Ejector

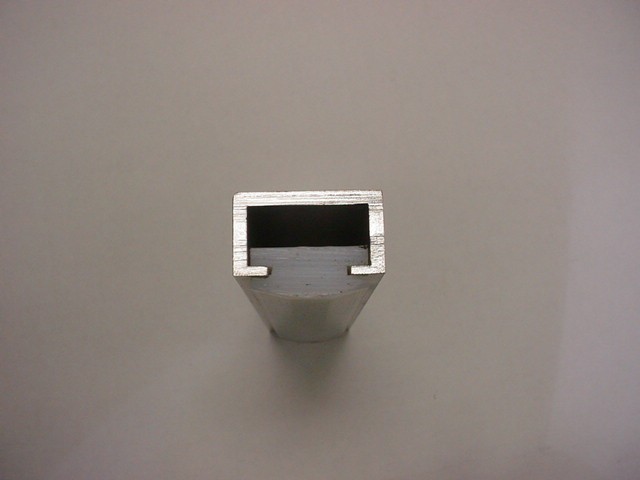

Our Thines are extruded from 6061 aluminum with extra
legs to hold the wear strip and provide additional
reinforcement. Lower Thines come with Wear Strips
installed.

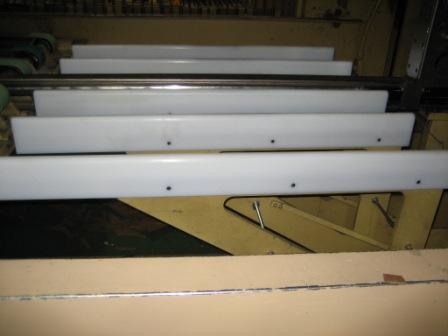

Top Guide
Replacements for Ward Counter Ejector Elevator
Elevator Top Wear Guides, installed with roll pins
through holes that already exist in most machines. If
your model does not have them they can be drilled with a
small right angle drill.
Ours are made extra
thick for added durability. The side legs are extra
long to provide reinforcement for the unsupported end.
This extra durability also means they are not easily
damaged by jam-ups.
Spanker Cams with
Shrink Disc
Spanker Cams for the Ward Counter Ejectors that have
been converted to shrink disc which eliminates the loose
keyway problem on the standard OEM design. Our Spanker
Cams need no modification to the Counter Ejector to
install.
OEM
Style Coupling on Counter Ejector
Ward Counter Ejector original style couplings, used in
all three positions can be converted to our multiple
Shrink Disc coupling.

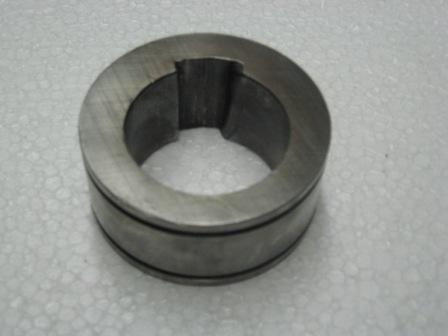

Our Shrink Disc
Coupling, machined from 4140 Steel, holds on most
damaged shafts without having to replace the pinion
shaft or motor due to the original style
coupling slipping and scarring their surfaces.
|
