The Carbon Shoe System

   Cut your downtime dramatically with this easy to change carbon shoe system.

Photos - Select Photos For Detail



The Carbon Shoe System...

...increases the wear surfaces by at least 375% more than the OEM’s.

...reduces machine downtime and maintenance costs from less frequent changes in wear surfaces.

...can be adjusted in a few minutes rather than several hours.

...is easy to install and does not require the use of complicated tools.

...means once heads are separated, no tools are required to shim the shoes.

...utilizes the original OEM machine without any modifications.

...provides extended wear life of plates.

...provides extended wear life of tooling.

...has no metal surfaces unlike the OEM’s that cause damage to your expensive contact surfaces.

...has shims that are color coded for easy identification.





What is the Carbon Shoe System?

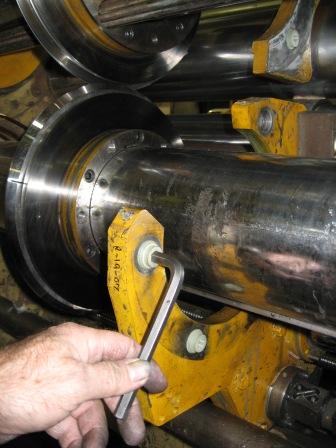

Custom made non- metallic set screws are installed into  the existing threaded holes in the yoke from which the wear  buttons are removed.

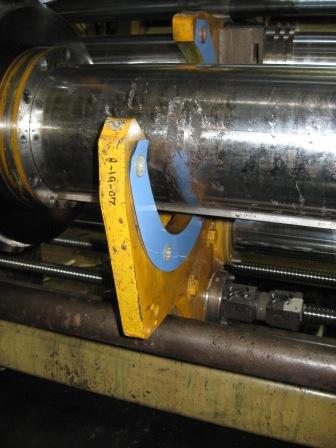

A shim is installed over the stud portion of the set screws which protrudes from the yoke and supports the shim and shoe.

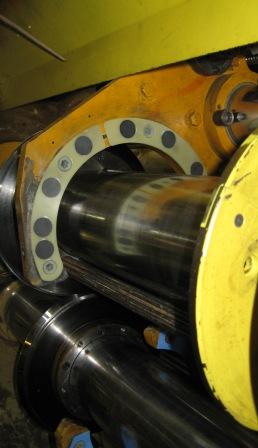

Next the shoe is installed over the studs and the head is reassembled, clearances are checked between the wear surfaces, and conversion is finished.







Order information

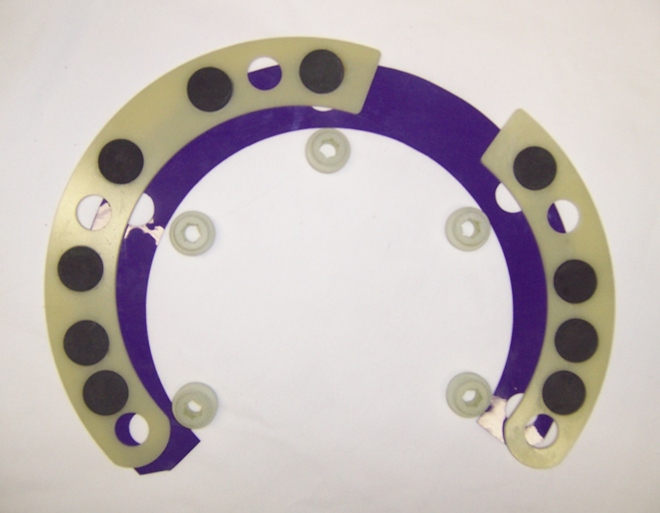

Your Carbon Shoe Conversion Set includes:

♦ 4 packs of the Large Diameter Shoe Sets


♦ 10 packs of the Small Diameter Shoe Sets


♦ 16 Large Diameter Shims (4 of each thickness: .010, .012, .015, .020)


♦ 40 Small Diameter Shims (10 of each thickness: .010, .012, .015,.020)


♦ 140 Custom Set Screws

Ask for QuickFab item number CSS100.

Carbon Shoe parts are also offered individually.





Please contact us for more information.
